10T Lightweight Axle
Fumin is a strong and durable 10T Lightweight Axle manufacturer. We provide high-quality axle products to meet customer needs. This product is lightweight, well-designed, and well-protected during transportation.
Send Inquiry
Product Description
Buy Fumin 10T Lightweight Axle directly from China factory – engineered with high-strength aluminum alloy and thickened tube walls, this axle weighs ≤320kg (up to 15% lighter than traditional welded designs). Whether you're upgrading a lowbed trailer or optimizing heavy-haul operations, Fumin delivers exceptional bending and torsion resistance, superior braking compatibility, and full ISO 9001 certification. View full specs below ↓ or request a quote now →
Total weight ≤ 320 kg – up to 15% lighter than conventional welded axles. Engineered with high-strength aluminum alloy and thickened tube walls, this axle delivers exceptional bending and torsion resistance, making it the ideal upgrade for lowbed trailers and heavy-haul operations. Replace your old 3-piece welded axle with a safer, more durable solution.
✅ Verified by 500+ trailer manufacturers across 30+ countries since 2020
✓ Lightweight Design
≤320kg total weight, maximizes legal payload and reduces tire wear.
✓ High-Strength Alloy
Special thickened aluminum alloy tube – resists bending, torsion, and fatigue.
✓ Lower Center of Gravity
Optimized for lowbed trailers, ensuring superior stability during transport.
✓ Universal Fit
Compatible with 10-M22×1.5 ISO studs, P.C.D 335mm, and 7.5v-20 rims.
What's Included in a Complete Axle Assembly?
Our 10T Lightweight Axle is a fully integrated system. Every component is engineered for durability and safety:
- Axle Beam Assembly: Bridge plate, brake mount, spherical bearing seat, air chamber seat, ABS support seat – supports full trailer weight.
- Camshaft Assembly: Camshaft, washers, bushings, spherical bearing seals, retaining rings – ensures smooth transmission.
- Brake Assembly: Brake pads, rollers, tension springs, return springs, retaining pins – critical for safe stopping power.
- Axle End Components: Brake drum, wheel hub, bearings, ABS ring gear, oil seal, dust cover, hubcap – connects wheels and absorbs road impact.
- Accessories: Lock washers, axle nuts, adjuster arms, cotter pins, ABS sensors – each plays a vital role in reliable operation.
Technical Specifications – 10T Lightweight Axle

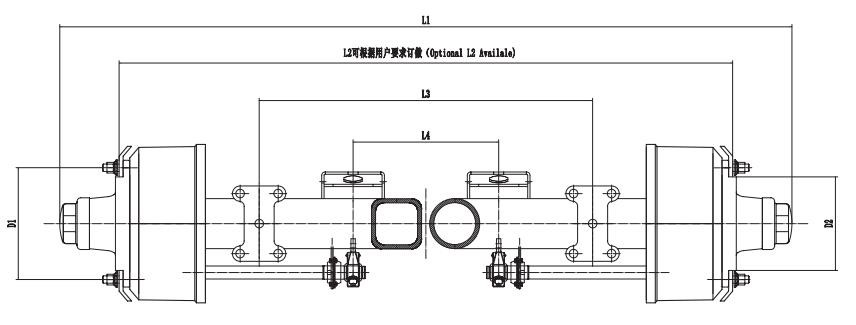

L2: SP Track (tire center distance) L3: Spring Seat Center Distance L4: Brake Chamber Center Distance (GM) L1: Total Axle Length P.C.D (D1): Stud Pitch Circle Diameter
| Axle Type | Capacity (T) | L2 (mm) | Brake Size | L3 (mm) | Axle Tube | L4 (mm) | Studs | P.C.D (mm) | D2 (mm) | L1 (mm) | Rim | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLAQD10YA03A2DE | 10 | 1840 | φ420×180 | 1000 | φ127×14 | 436 | 10-M22×1.5 | 335 | 281 | 2185 | 7.5v-20 | 280 | 32314 / 32222 |
| SLAQD10YA03A4DE | 10 | 1840 | φ420×220 | 1000 | φ127×14 | 396 | 10-M22×1.5 | 335 | 281 | 2185 | 7.5v-20 | 295 | |
| SLAQD10YA03A2DE | 10 | 2050 | φ420×180 | 1300 | φ127×14 | 646 | 10-M22×1.5 | 335 | 281 | 2395 | 7.5v-20 | 290 | |
| SLAQD10YA03A4DE | 10 | 2050 | φ420×220 | 1300 | φ127×14 | 606 | 10-M22×1.5 | 335 | 281 | 2395 | 7.5v-20 | 305 | |
| SLAQD10FB03A2DE | 10 | 1840 | φ420×180 | 1000 | 150×150×10 | 436 | 10-M22×1.5 | 335 | 281 | 2185 | 7.5v-20 | 310 | |
| SLAQD10FB03A4DE | 10 | 1840 | φ420×220 | 1000 | 150×150×10 | 396 | 10-M22×1.5 | 335 | 281 | 2185 | 7.5v-20 | 325 | |
| SLAQD10FB03A2DE | 10 | 2050 | φ420×180 | 1300 | 150×150×10 | 646 | 10-M22×1.5 | 335 | 281 | 2395 | 7.5v-20 | 320 | |
| SLAQD10FB03A4DE | 10 | 2050 | φ420×220 | 1300 | 150×150×10 | 606 | 10-M22×1.5 | 335 | 281 | 2395 | 7.5v-20 | 335 |
* All specifications are based on standard production. Custom options available upon request.
Selection & Safety Guide
- Match your model: Always verify the axle type, track length (L2), and spring seat distance (L3) against your trailer chassis.
- Genuine parts: Use only certified components (brake drums, bearings, ABS sensors) to maintain safety and warranty.
- Regular inspection: Check brake pad wear, oil seals, and torque on wheel nuts before every long-haul trip.
- Load compliance: Never exceed the 10T rated capacity – overloading voids warranty and compromises road safety.
Why choose Fumin? We are an ISO 9001:2015 certified manufacturer with over 15 years of axle production experience. Every axle is tested for fatigue, bending, and braking performance before leaving our factory. ISO 9001
Frequently Asked Questions
Q3: Do you offer free samples?
A: Yes, we support free sample orders for quality verification. Shipping and customs fees are typically borne by the buyer. Click here to request your free sample →
Q4: What bearings are used in this axle?
A: All models of 10T Lightweight Axle are equipped with 32314 (inner) and 32222 (outer) tapered roller bearings, ensuring long service life and easy replacement.
