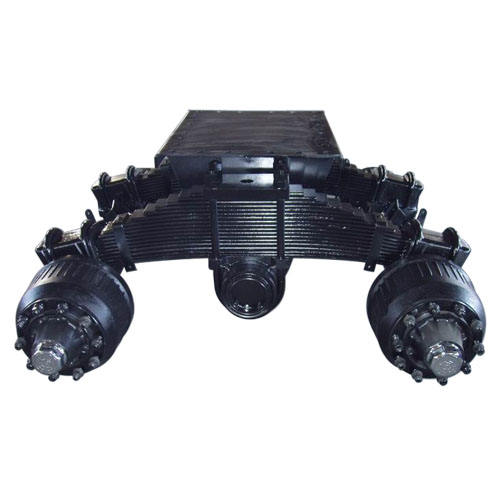

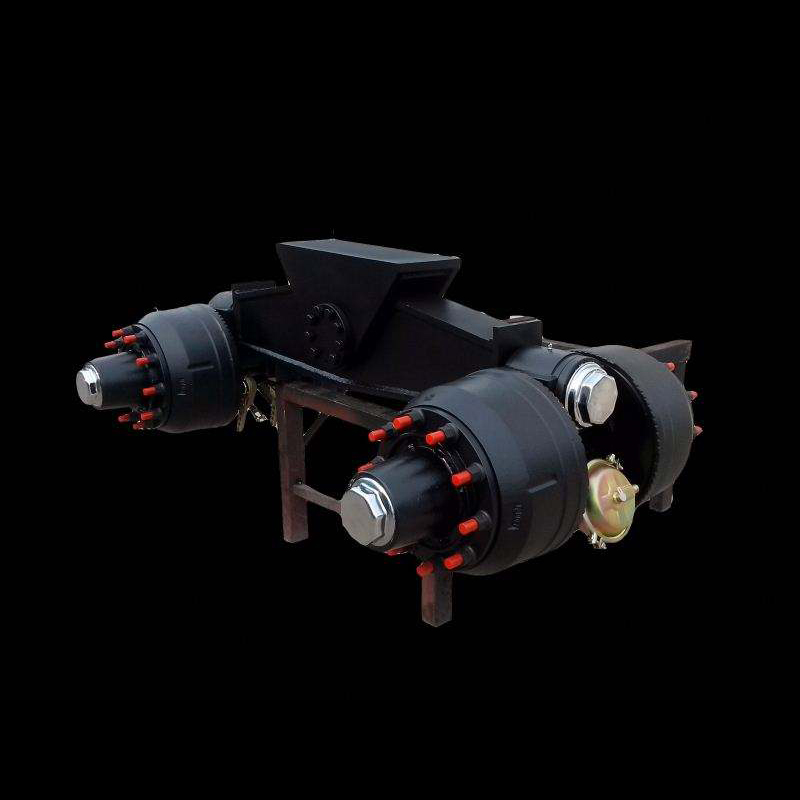

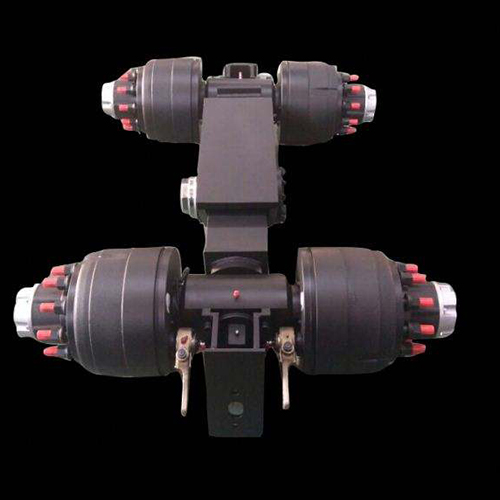

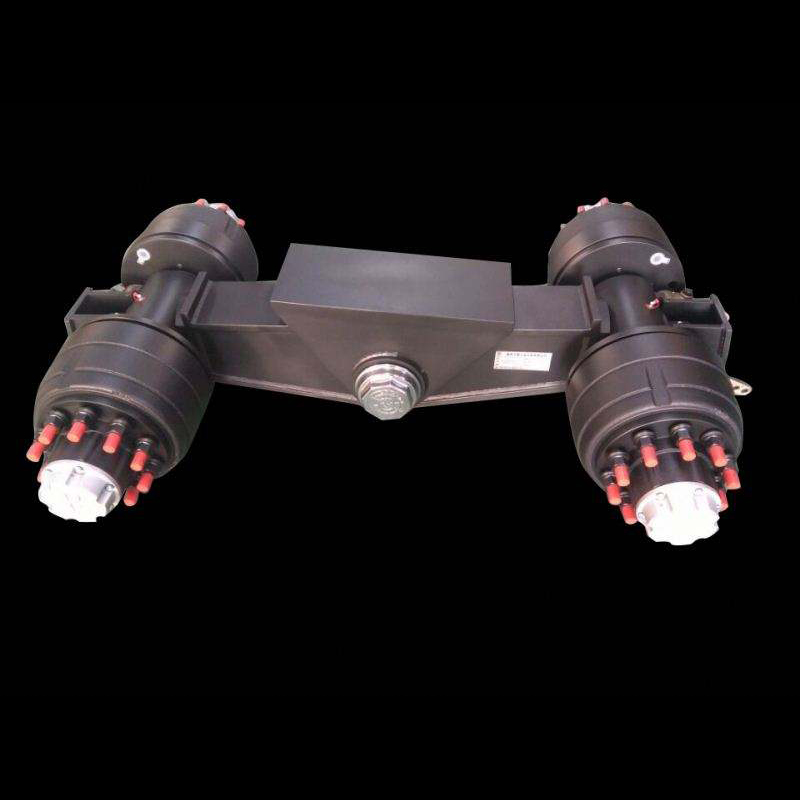

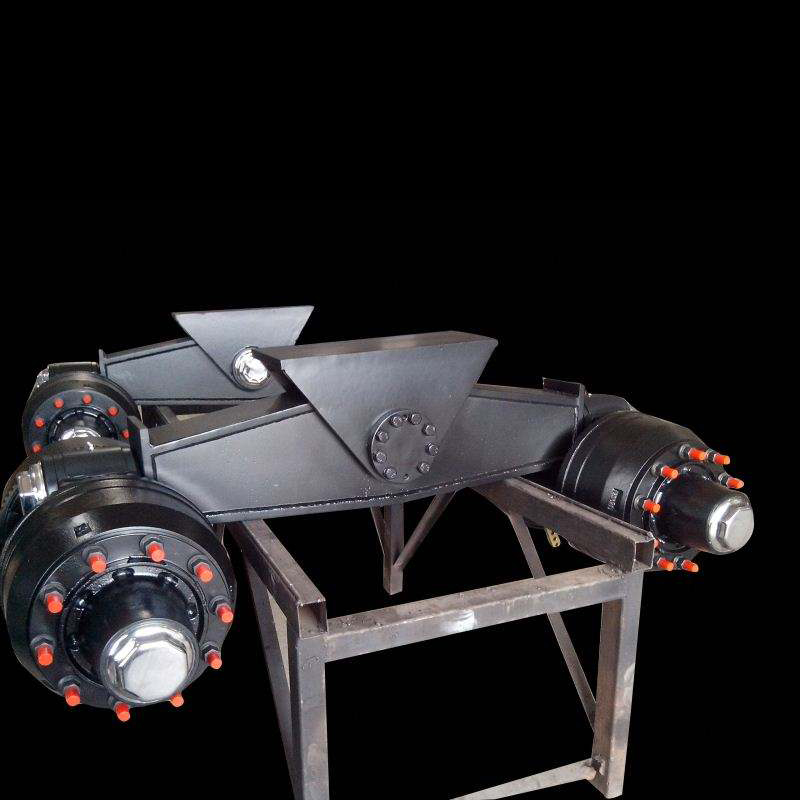

65t Semi Trailer Truck Tandem Axle Suspension
  • 65t Semi Trailer Truck Tandem Axle Suspension - 0 65t Semi Trailer Truck Tandem Axle Suspension - 0
  • 65t Semi Trailer Truck Tandem Axle Suspension - 1 65t Semi Trailer Truck Tandem Axle Suspension - 1
  • 65t Semi Trailer Truck Tandem Axle Suspension - 2 65t Semi Trailer Truck Tandem Axle Suspension - 2
  • 65t Semi Trailer Truck Tandem Axle Suspension - 3 65t Semi Trailer Truck Tandem Axle Suspension - 3
  • 65t Semi Trailer Truck Tandem Axle Suspension - 4 65t Semi Trailer Truck Tandem Axle Suspension - 4

65t Semi Trailer Truck Tandem Axle Suspension

As the professional manufacture, we would like to provide you 65t Semi Trailer Truck Tandem Axle Suspension. And we will offer you the best after-sale service and timely delivery. Use:Trailer Parts
Parts:Trailer Suspension
OE NO.:no
Max Payload:120T
Size:Optional
Place of Origin:Shandong, China
Model Number:RNFG100-03
Certificate:ISO9001-2008/TS 16949
Type:Rigid Suspension
Material:Carbon Steel
Tyre Size:12.00x20.18ply Optional
Axle Distance:155 0mm
Rim Size:8.50-20 Optional
Capacity:120T,100T,80T,75T,45T
Order Amount:small order is available

Send Inquiry

Product Description


65t Semi Trailer Truck Tandem Axle Suspension

A Fumin 65t semi-trailer truck with a tandem axle suspension refers to a heavy-duty truck-trailer combination capable of carrying a maximum load of 65 tons and equipped with a tandem axle suspension system. This type of suspension is commonly used in large commercial vehicles to provide stability, load-bearing capacity, and improved ride quality.

Here are some key features and considerations related to a 65-ton semi-trailer truck with tandem axle suspension:

Load Capacity: The truck-trailer combination is designed to handle a maximum load capacity of 65 tons. The tandem axle suspension system is engineered to distribute the weight evenly between the axles, allowing for greater load-carrying capability.

Tandem Axle Suspension: Tandem axle suspension consists of two axles placed closely together, usually with a fixed distance between them. This design helps to evenly distribute the weight of the trailer and its load, improving stability and handling. Tandem axles also help to reduce the stress on individual axles, tires, and other suspension components.

Suspension Type: Various types of tandem axle suspension systems are available, including leaf spring suspensions, air suspensions, or a combination of both. Leaf spring suspensions use multiple layers of steel springs to absorb shocks and provide load support, while air suspensions use airbags to provide adjustable ride height and better shock absorption.

Braking System: The braking system of a 65-ton semi-trailer truck with tandem axle suspension will typically incorporate air brakes. Air brakes provide efficient and reliable braking performance, especially for heavy loads. The braking system may also include features like anti-lock braking system (ABS) for enhanced safety.

Maintenance and Service: Regular maintenance and inspection of the tandem axle suspension system are crucial to ensure proper functioning and longevity. This includes checking for any signs of wear, maintaining proper tire inflation, lubricating moving components, and ensuring the alignment of the axles.

Legal Regulations: It's important to comply with local regulations and legal requirements regarding weight limits, axle spacing, and other specifications for commercial vehicles. Different jurisdictions may have specific regulations in place to ensure road safety and prevent overloading.

When selecting a 65-ton semi-trailer truck with tandem axle suspension, it's advisable to consult with truck and trailer manufacturers or specialists who can provide guidance on the appropriate configuration and specifications based on your specific hauling needs and local regulations.

65t Semi Trailer Truck Tandem Axle Suspension Description

RIGID SUSPENSION SPECIFICATION
Model Capacity Tonnes(T) Axle Distance Mount Height Minimum Mounting Stool Centres Mounting Stool Length Mounting Stool Width Bogie Track Width Overall Width Over Tyres Minimum Width Between Centre Tyres Recommended Tyre Size(mm) Wheel Rim Size(mm)
KMAG45/15 45 1220 380 350 1549 610 570 255 815 2890 260 8.25*15.18ply 6.50-15
KMAG60/15 60 1220 380 350 1549 610 570 255 815 2890 260 8.25*15.18ply 6.50-15
KMAG70 70 1350 427 1750 570 250 930 3298 202 10.00*20.18ply 7.50-20
KMAG75 75 1550 457 427 1702 610 570 255 890 3200 214 10.00*20*16ply 7.50-20
KMAG80 80 1550 427 1860 570 255 970 3500 220 12.00*20.18ply 8.50-20
KMAG100 100 1500 457 2000 620 255 1000 3680 320 12.00*20.18ply 8.50-20
TT100-03 100 1550 427 2300 620 255 1000 3980 620 12.00*20.18ply

Our Advantages

<1>This kind of Rigid-suspension is used for 16 wheel big trailer,it is connected by axle in two  sides.It has good and heavy capacity,more safe.
<2>Rigid-suspension take small space, easy install,less maintenance, high stability and good  safety.
<3>Novel design,various styles and excellent materials.
<4>Professional and animated design.
<5>Environmmentally favorable materials and equirpments.
<6>Providing the top quality and best services.
<7>A small majority orders are acceptable.
<8>Marvelous and satisfactory after-sale services and .
<9>Colors,sizes and etc.can be adjusted as your requirements.
<10>Your any order  will be enthusiastically welcomed.





FAQ

Q1:Are you a factory?
A:Yes,we are a factory,but not just a factory,as we have sales team,our own offices,and they
all can help the buyers and cooperative partners to decide which products are the best choices
for them,and all your requirements and inquires will be replyed in time.

Q2:What's your Delivery Time?
A:In general, the delivery time is 15-20 days.We will make the delivery as soon as possible with
the guaranted quality.

Q3:What is the convenient way to pay?
A:L/C , T/T,Unionpay,DP are accepted,and if you have a better idea , please be free sharing with us.

Q4:Which type of shipping would be better?
A:Generally,in consideration of the cheap and safe superiorities of sea transportation,we advice
to make delivery by sea.What's more, we respect your views of other transportation as well.
