Electric Brake Plate and Hub Drum ATV Trailer Parts

Use:Trailer Parts
Parts:Trailer Axles
OE NO.:AC003
Max Payload:1500kg per axle
Size:10 inch free PCD
Place of Origin:Shandong, China
surface treatment:galvanized/ dacromet/ painted
Brake hub Drum:4, 5, 6 studs, free PCD
Hand brake lever:available
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Electric Brake Plate and Hub Drum ATV Trailer Parts. We look forward to cooperating with you.

Send Inquiry

Product Description

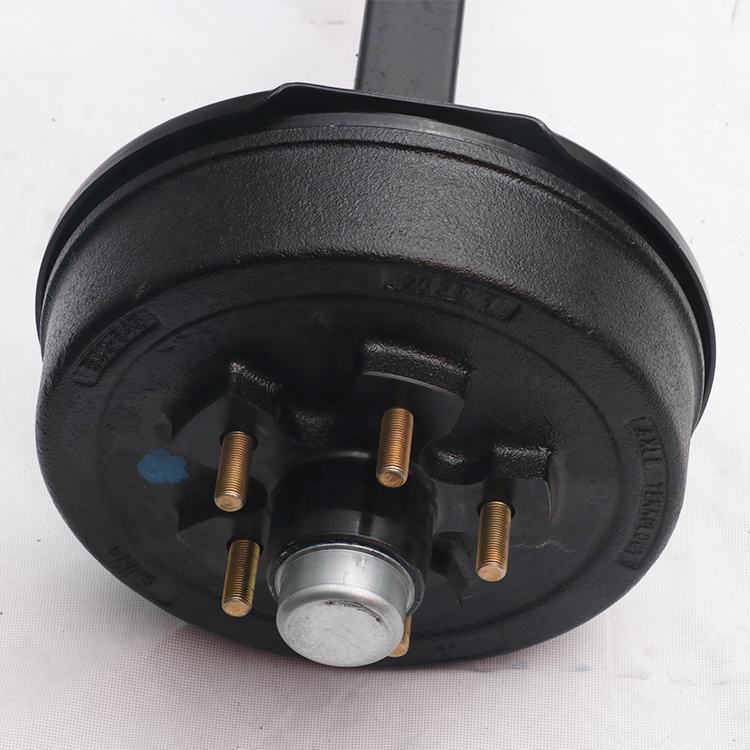

Electric Brake Plate and Hub Drum ATV Trailer Parts

Fumin Electric Brake Plate and Hub Drum ATV Trailer Parts are important components of ATV trailer parts that are commonly used in trailers equipped with electric braking systems. They work together to provide braking force and help control the trailer's movement. Here's an overview of these components:
Electric Brake Plate: The electric brake plate, also known as an electric brake assembly or brake backing plate, is responsible for applying friction to the trailer's hub drum, causing the trailer to slow down or stop. It consists of several key components:
Brake Shoes: Brake shoes are the friction materials that press against the inside surface of the hub drum to create friction and generate braking force. They are typically lined with a heat-resistant material, such as brake lining or brake pads, to enhance performance and durability.
Brake Magnets: Brake magnets are electromagnets that are activated when an electric current is applied to them. When activated, they attract the hub drum, causing the brake shoes to come into contact with the drum and create friction for braking. The strength of the magnets determines the braking force.
Actuating Lever and Spring: The actuating lever is connected to the brake shoes and converts the force exerted by the brake magnets into a mechanical force to apply the brake shoes against the hub drum. The actuating lever is usually equipped with return springs to retract the brake shoes when the brake is released.
Hub Drum: The hub drum, also known as the brake drum or brake rotor, is a cylindrical component mounted on the trailer's axle. It provides a rotating surface for the brake shoes to press against when the brakes are applied. The hub drum is typically made of cast iron or steel and is designed to withstand the friction and heat generated during braking.
Wheel Hub: The wheel hub is the central component that connects the trailer wheel to the axle. It houses the hub drum and provides support for the wheel bearings, ensuring smooth rotation of the wheel.
When the trailer's braking system is activated, an electrical current is sent from the trailer's brake controller to the electric brake plates. The current energizes the brake magnets, causing them to attract the hub drum. This brings the brake shoes into contact with the drum, generating friction and slowing down the trailer.
It's important to choose electric brake plates and hub drums that are compatible with your ATV trailer's specifications, including load capacity, axle rating, and braking requirements. Regular inspection and maintenance of these components are crucial to ensure optimal braking performance, including checking for wear on the brake shoes, adjusting brake shoe clearances, and inspecting the hub drums for any signs of damage or excessive wear.

About the Electric Brake Plate and Hub Drum ATV Trailer Parts:

1. 10 *2 1/4 inch electric brake assembly, semi-metallic brake material, (with hand brake).
2. brake hub drum, 4,5,6 studs, PCD 114.3, 120.65, 139.7mm
3. trailer spindle/ stub, with hex nut, washer and split pin.
4. other axle accessory, like oil seal, bearing kit.
5. galvanized/ dacromet/ painted to anti rust.
6. Used for the mainstream 1500kg light trailers, caravan and mobile home.
7. the hot seller in North American and Australian market.
